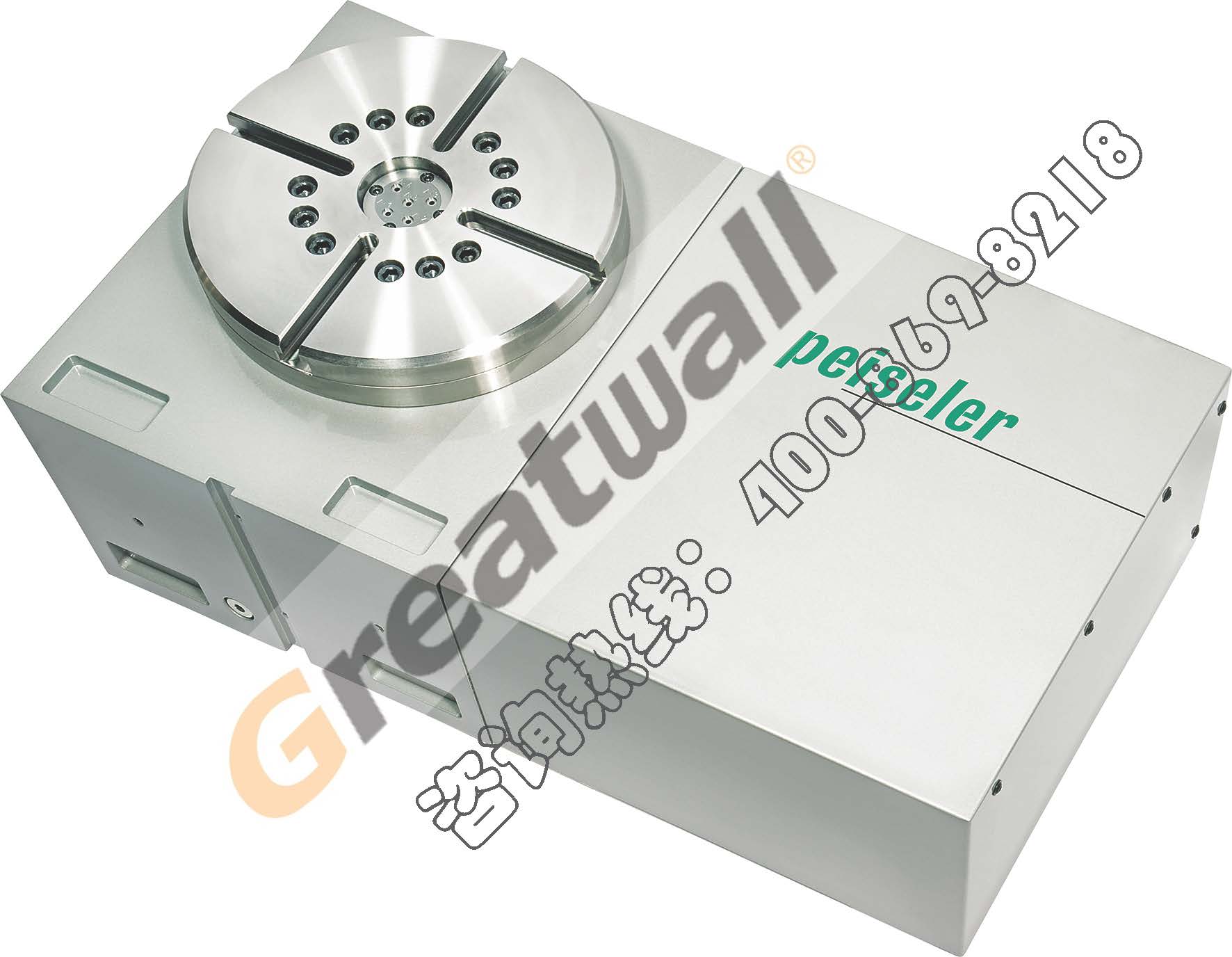

Bearing diameter 轴承尺寸

280x185mm

incl.star-shaped T-slots based on DIN650    T型槽                   4X14H7

diameter of center boer   中心孔

 64H7

Worm gear ratio 蜗轮蜗杆减速比

72:1

Max.center bore diameter 中心孔直径 （mm）

40mm

Unit weight,appr. 转台重量（Kg）

230kg

prepared for encoder type                                         Heidenhain RCN2380

with a systen accuracy of  定位精度

±5″

repeatability   重复定位精度

±1″

Servodrive Siemens伺服电机

siemens

Servodrive Fanuc伺服电机

fanuc

Servodrive Heidenhain伺服电机

Heidenhain

for horizontal axis卧式使用

Center height中心高度

245mm

Load capacity最大承重

600kg

Load capacity with support bearing带支撑座时最大承重

750kg

Load capacity with trunnion带尾座时最大承重

750kg

Max.tilting moment at the axis of rotation最大倾覆力矩

5500Nm

Max.tilting moment with trunnion带尾座时倾覆力矩

6600Nm

max.axial load最大轴向负载

27000N

Rectangularity including wobble垂直度

0.01mm/D=300mm

for vertical axis立式使用

Table height转台高度

256mm

Load capacity最大承重

1300kg

max.tilting moment at the axis of rotation最大倾覆力矩

8000Nm

max.axial load最大轴向负载

40000N

plain parallelism including wobble台面平行度

0.01mm/D=300mm

Dividing accuracy at the worm drive蜗轮蜗杆定位精度

±15″

Max.mass moment of inertia最大惯量

50kgm²

Max.tangential torque without clamping非夹紧状态最大切向力矩

2100Nm

required pressure for clamping 最大加紧状态压力

气动6/60bar液压

Max.tangential torque with clamping actuated夹紧状态最大切向力矩

4000Nm

Concentricity of the pilot diameter中心孔跳动

0.01mm
