技术参数如下:

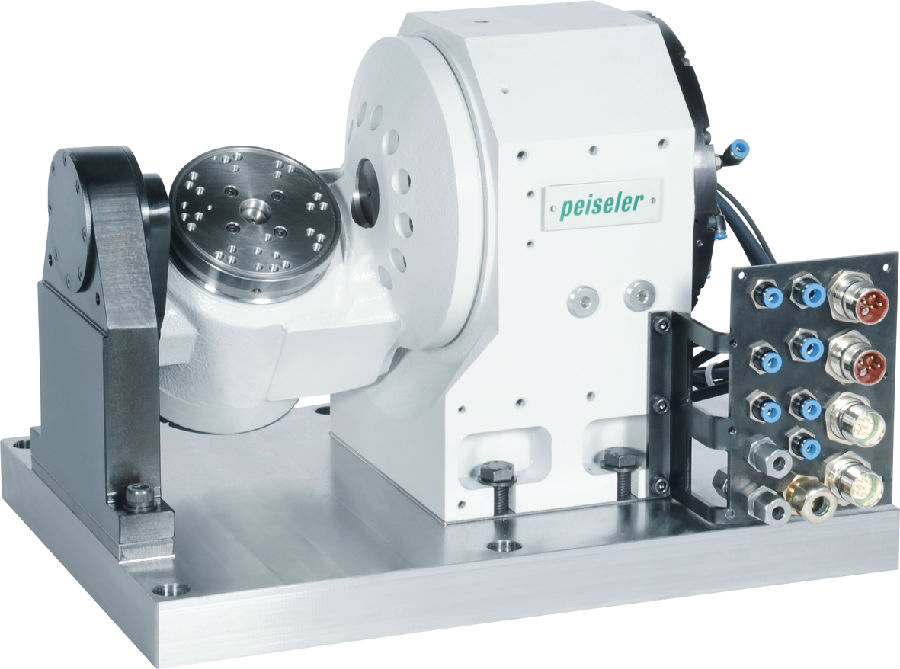

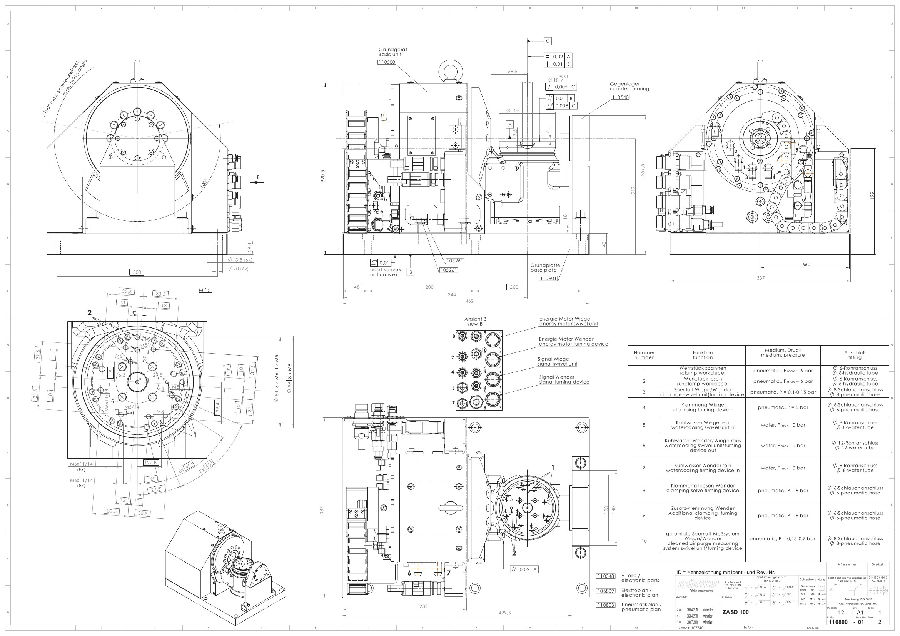

Peiseler 2-Axis Swivel Unit Type 派士乐2轴可倾式数控转台       型号：ZASD 100

with direct drives consisting of: 包含：

1) Peiseler NC-Direct Driven Table Type 派士乐数控直驱立式转台– C轴  型号：ATD 100 (C-Axis)

diameter of faceplate     台面直径                                                 105 mm

axial run-out of faceplate   台面轴向跳动                                      0,008 mm / dia. 350 mm

diameter of center bore     中心孔直径                                      18,00 + 0,01 mm

concentricity of center bore 中心孔跳动                                                 0,005 mm

bearing of faceplate   德国INA公司转台专用YRT轴承            axis/radial  轴向/径向

diameters of bearing      轴承直径                                                70 x 40 mm

driven via direct torquemotor   力矩电机直接驱动

incl. encoder type               包含直装编码器

with a system accuracy of        定位精度                                       ±5’’

the following data based on water-cooling:

以下为水冷条件下参数：

peak torque  峰值扭矩                                                               22 Nm

continuous torque      持续扭矩                                                      12 Nm

peak current 峰值电流                                                               5.4 A

continuous current 持续电流                                                 2.7 A

continuous power dissipation, max.       最大功率消耗                       700 W

temperature difference (input-output)温差（输入/输出）             2 K

water flow, min.       流量/分                                                   5 L/min

pressure input, max.  最大输入压力                                               10 bar

pressure drop, max.   最大压力损耗                                               3.5bar

speed of faceplate, max.最高转速                                             700 rpm

tilting torque, max.最大倾覆力矩                                                      150 Nm

axial load, max.   转台中心允许切削力                                                600 N

transport load max.最大承重                                                   24kg

type of clamping  夹紧方式                                                         气动/主动

(clamped without pressure)(不含压力的夹紧)

pressure for unclamping   松开压力                                              6 bar

clamping torque, max.       夹紧时最大扭矩                                             25 Nm

Peiseler NC-Indexing Table Type 派士乐数控直驱卧式转台– A轴  型号： AWD 125 (A-Axis)

swivel range 摆动范围                                                               +/- 100 °

axis of rotation     旋转轴                                                            卧式

center height 中心高                                                                 217mm

bearing of faceplate   INA公司转台专用YRT轴承                 轴向/径向

diameters of bearing  轴承直径                                                    146x 80 mm

driven via direct torquemotor力矩电机直接驱动

incl. direct encoder type 包含直装编码器

with a system accuracy of 定位精度                                             ±8’’

the following data based on water-cooling:

以下为水冷条件下参数

peak torque  峰值扭矩                                                               70 Nm

continuous torque      持续扭矩                                                     32Nm

peak current 峰值电流                                                               13.9 A

continuous current持续电流                                                    5 A

continuous power dissipation, max.       最大功率消耗                             1100W

temperature difference (input-output) 温差（输入/输出）                 2K

water flow, min.   流量/分                                                          7 l/min

pressure input, max.  最大输入压力                                               10 bar

pressure drop, max.   最大压力损耗                                               2 bar

speed of faceplate, max.最高转速                                            120 rpm

type of clamping  夹紧方式                                                        气动/主动

(clamped without pressure)(不含压力的夹紧)

pressure for unclamping   松开压力                                             6 bar

clamping torque, max.       夹紧时最大扭矩                                            180 Nm

3) Peiseler Counterbearing Type 派士乐尾座 – A轴    型号： GAAS (A-Axis)

without drive 不含驱动

Without clamping 不含夹紧

Bearing of faceplate INA公司转台专用YRT轴承

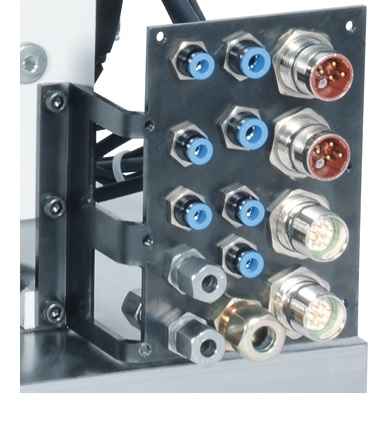

Complete ZASD  incl. air purge connection

全套ZASD转台包含空气涤清接头

Air purge input   气压输入                                       6 bar

Air purge output, max. 最大气压输出                              0.2 bar

ident.-no.: 110800
