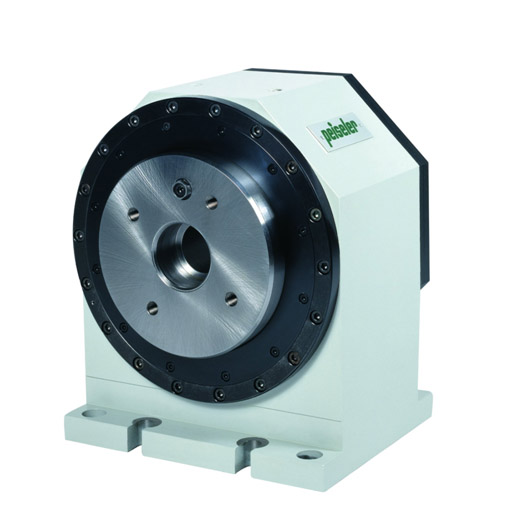

数控转台AWD160

来自德国，科技代表质量，历史证明品质

产品特色：结构紧凑，动态性能高，扭矩大

主要应用：机床改造，机床增加轴，可增加液压夹盘，可做车床主轴

主要参数：

技术参数如下:

Peiseler NC-Indexing Table Type                                               型号： AWD160

派士乐数控直驱卧式转台

Faceplate diameter台面直径                                                           200 mm

With T-slots星形放射T型槽                                                               DIN 650

Diameter of center bore       中心孔直径                                          40 H7

bearing of faceplate   INA公司转台专用YRT轴承                       轴向/径向轴承

diameters of bearing     轴承直径                                                    185×100 mm

driven by torque motor力矩电机驱动

prepared for measuring system type编码器型号                          海德汉RCN 228

system accuracy直装编码器后精度                                               ±2.5″

max.torque:最大扭矩：

with water –cooling水冷                                                                120 Nm

peak torque峰值扭矩                                                                      200 Nm

axis of rotation旋转轴                                                                      horizontal卧式

table speed,max 最高转速                                                             1200 rpm

active clamping主动夹紧

loosing at  松开压力                                                                       液压by 120bar

max.pneumatic pressure for air purge                                         0.2 bar

空气涤清接头最大气压输出

Max, transport load最大承重                                                       150 kg

max. tilting moment.最大倾覆力矩                                      1200 Nm

max.tangential torque with clamping actuated夹紧时最大切向扭矩      800 Nm

runout of centre bore 中心孔跳动                                         0.01 mm

rectangularity incl.wobble台面跳动                                  0.01 mm

center height中心高                                                                     165 mm

cooling system冷却系统：

cooling capacity冷却功率                                         3000 w

flow rate冷却剂流量                                              10 l/min

pressure input, max.冷却剂最大输入压力                            8 bar

temperature-difference(input-output) 温差（输入/输出）              1 K

with motor含电机

with measuring system type含编码器型号                          RCN 228

without chiller不含冷却器
