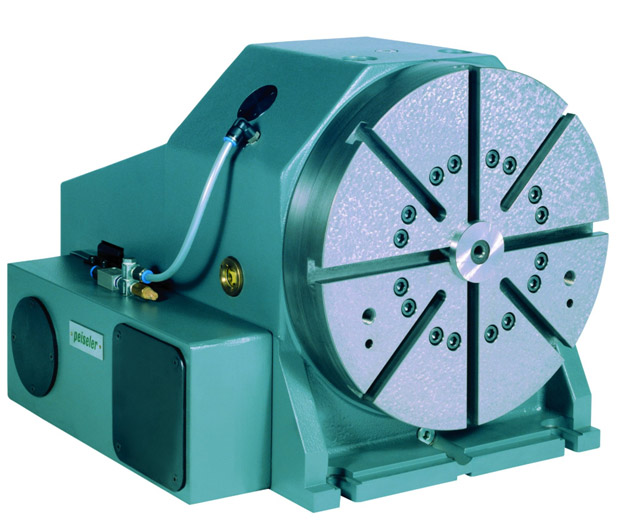

卧式转台 数控转台AWU355

Peiseler NC Rotary table Type派士乐卧式数控转台              型号：AWU355

 Axis of rotation旋转轴线                                                                  horizontal 卧式

Center height中心高                                                                230 mm

Diameter of faceplate台面直径                                                      Ø 355 mm

Bearing of faceplate德国INA公司转台专用YRT轴承               axial /radial轴向/径向

Driven by backlash free adjustable worm gear                            由可消隙的德国OTT蜗轮蜗杆传动

Diameter of worm wheel 蜗轮直径                                                Ø 252 mm

Indexing accuracy of worm gear蜗轮蜗杆分度精度                     ±10”

Prepared for servomotor type可匹配伺服电机                             型号:西门子 1FT 6082

Tilting torque, max. 最大倾覆力矩                                                  6500 Nm

Axial load, max转台中心允许最大切削力                             30000 N

Transport load, max 最大承重                                                 650 Kg
