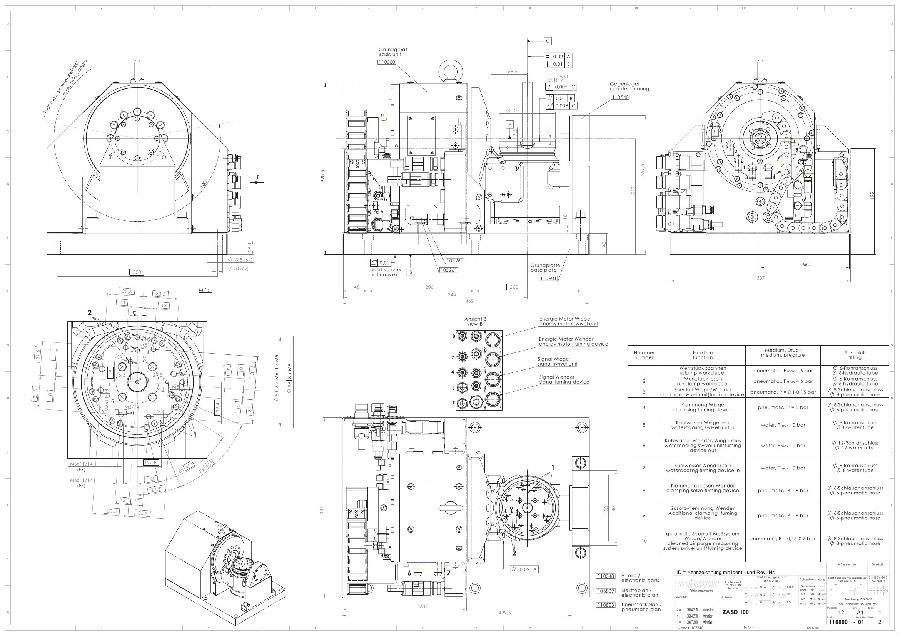

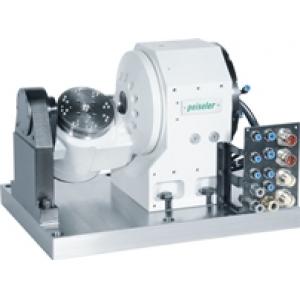

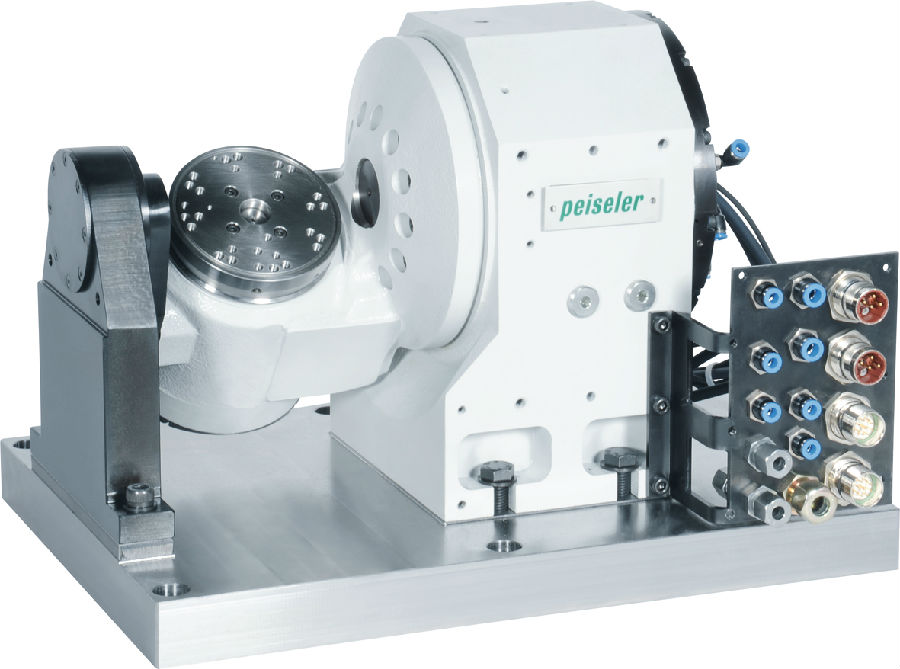

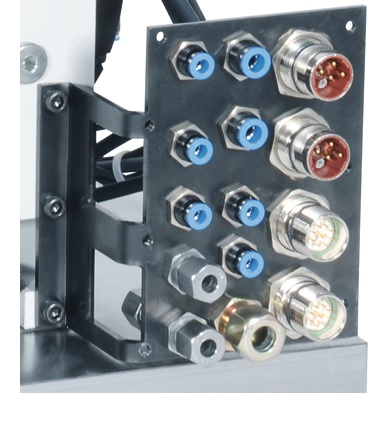

技术参数如下: Peiseler 2-Axis Swivel Unit Type 派士乐2轴可倾式数控转台 型号：ZASD 100 with direct drives consisting of: 包含： 1) Peiseler NC-Direct Driven Table Type 派士乐数控直驱立式转台– C轴 型号：ATD 100 (C-Axis) diameter of faceplate 台面直径 105 mm axial run-out of faceplate 台面轴向跳动 0,008 mm / dia. 350 mm diameter of center bore 中心孔直径 18,00 + 0,01 mm concentricity of center bore 中心孔跳动 0,005 mm bearing of faceplate 德国INA公司转台专用YRT轴承 axis/radial 轴向/径向 diameters of bearing 轴承直径 70 x 40 mm driven via direct torquemotor 力矩电机直接驱动 incl. encoder type 包含直装编码器 with a system accuracy of 定位精度 ±5’’ the following data based on water-cooling: 以下为水冷条件下参数： peak torque 峰值扭矩 22 Nm continuous torque 持续扭矩 12 Nm peak current 峰值电流 5.4 A continuous current 持续电流 2.7 A continuous power dissipation, max. 最大功率消耗 700 W temperature difference (input-output)温差（输入/输出） 2 K water flow, min. 流量/分 5 L/min pressure input, max. 最大输入压力 10 bar pressure drop, max. 最大压力损耗 3.5bar speed of faceplate, max.最高转速 700 rpm tilting torque, max.最大倾覆力矩 150 Nm axial load, max. 转台中心允许切削力 600 N transport load max.最大承重 24kg type of clamping 夹紧方式 气动/主动 (clamped without pressure)(不含压力的夹紧) pressure for unclamping 松开压力 6 bar clamping torque, max. 夹紧时最大扭矩 25 Nm Peiseler NC-Indexing Table Type 派士乐数控直驱卧式转台– A轴 型号： AWD 125 (A-Axis) swivel range 摆动范围 +/- 100 ° axis of rotation 旋转轴 卧式 center height 中心高 217mm bearing of faceplate INA公司转台专用YRT轴承 轴向/径向 diameters of bearing 轴承直径 146x 80 mm driven via direct torquemotor力矩电机直接驱动 incl. direct encoder type 包含直装编码器 with a system accuracy of 定位精度 ±8’’ the following data based on water-cooling: 以下为水冷条件下参数 peak torque 峰值扭矩 70 Nm continuous torque 持续扭矩 32Nm peak current 峰值电流 13.9 A continuous current持续电流 5 A continuous power dissipation, max. 最大功率消耗 1100W temperature difference (input-output) 温差（输入/输出） 2K water flow, min. 流量/分 7 l/min pressure input, max. 最大输入压力 10 bar pressure drop, max. 最大压力损耗 2 bar speed of faceplate, max.最高转速 120 rpm type of clamping 夹紧方式 气动/主动 (clamped without pressure)(不含压力的夹紧) pressure for unclamping 松开压力 6 bar clamping torque, max. 夹紧时最大扭矩 180 Nm 3) Peiseler Counterbearing Type 派士乐尾座 – A轴 型号： GAAS (A-Axis) without drive 不含驱动 Without clamping 不含夹紧 Bearing of faceplate INA公司转台专用YRT轴承 Complete ZASD incl. air purge connection 全套ZASD转台包含空气涤清接头 Air purge input 气压输入 6 bar Air purge output, max. 最大气压输出 0.2 bar ident.-no.: 110800 |
