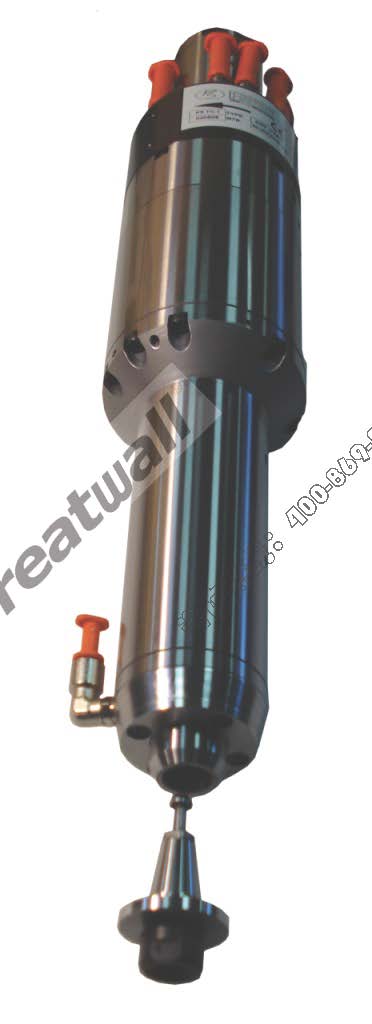

PS电主轴展品信息
产品型号：PS TC-2-HSK E40
产品各项技术参数：
1.Max speed 最高转速：30000r/min
2.Max torque最大扭矩：1.4N.m (S1)
3.Max power 最大功率：3KW (S1)
4.Spindle's front largest diameter with cooling water jacket主轴带电机冷却水套后前端最大安装直径：￠100mm
5.Taper of spindle runout 主轴锥孔跳动：0.002mm
6.Ø40 front hybrid ceramic bearing主轴前端轴承最大直径为：￠40mm
7.inlet air coolant motor(6 bar) (G1/8″)冷却液入口(6 bar) (G1/8″)
8.coolant outlet (G1/8″)冷却液出口
9.hydraulic pressure (50bar max) (G1/4″)(to use only with stop spindle) 液压 （只用于主轴刹停）
10.inlet air arbor’s cleaning 6bar (G1/8″)(please use only and exclusively with released tool and piston under pressure) 刀具涤清（只用于活塞松刀）
11.Electric connection 电气连接
3 phases motor - earth 三相电机- 接地
Motor thermich switch (NC) 电机热传感器
12.outlet sensor’s cables (S1 – S2 – S3 – S4 ) 刀具传感器
S1 = Tool’s arbor clamped 刀具夹紧时
S2= piston under pressure ready for receving tools arbor 无刀状态监测
The electrospindle cannot turn 主轴不可旋转
S3= signal of spindle rotating 主轴旋转
S4= tool’s arbor not clamped 未装刀状态监测
The electrospindle cannot turn 主轴不可旋转
13.front – side pressurization- (1/8″) 前端气密封
产品特点：
1. 主轴关键零部件配置采用欧洲著名品牌的ATE电机、SNFA陶瓷球轴承、balluff传感器。The main parts using famous brand in europe ATE motor, SNFA ceramic ball bearings, Balluff sensor
2. 主轴气压松刀，松刀压力6bar，主轴刀具卡紧用碟簧。hydraulic pressure unclamping tool , max pressure 50bar, tool clamping with disc spring, hydraulic pressure clamping tool 50bar (rerurn cylinder piston).
3. 主轴电机轴承需采用外置水冷机循环水冷，并采用温度传感器对主轴电机进行温升监控。spindle motor bearings need to adopt an external water cooler , and using KTY84, the front and end bearing with PT100 temperature sensor to check motor and the bearing temperature
4. 主轴轴承采用永久性脂润滑。Bearings's lubrication by permanent grease
5. 主轴芯轴液压抱紧压力50bar。spindle shaft hydraulic clamping pressure 50bar.
具有锥孔吹气功能，实现主轴换刀过程中的刀柄及锥孔的清洁。Tool cleaning
6.具有主轴前端轴承气密封功能。Front, – side pressurization
7.主轴电机自带外冷水冷套，无需用户自己设计水冷套，安装使用更加方便可靠。Spindle with cooling water jacket
