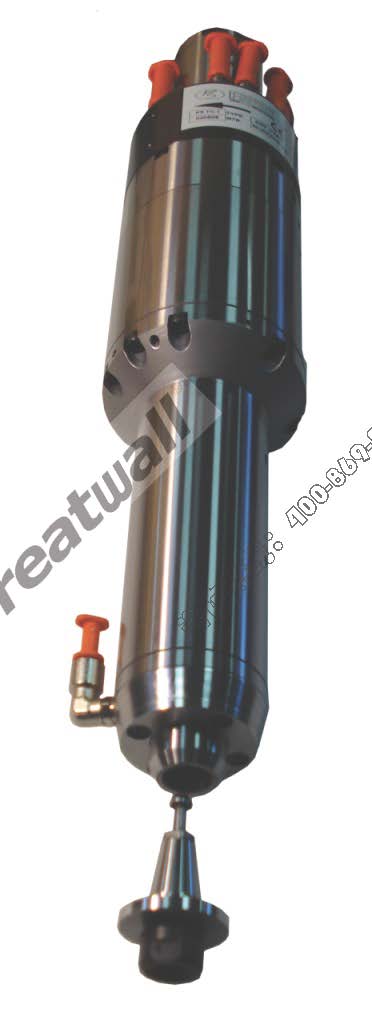

PS电主轴展品信息

产品型号：PS-TC-2-V -SP

产品各项技术参数：

1.Max speed  最高转速：30000r/min

2.Max torque最大扭矩：5.9N.m (S1)

3.Max power  最大功率：5KW (S1)

4.Spindle's front largest diameter with cooling water jacket主轴带电机冷却水套后前端最大安装直径：￠100mm

5.Taper of spindle runout  主轴锥孔跳动：0.002mm

6.Ø40 front hybrid ceramic bearing主轴前端轴承最大直径为：￠40mm

7.Electric connection 电气连接

3         phases motor -  earth 三相电机- 接地

8.outlet sensor’s cables (S1 – S2 – S3 – S4 ) 刀具传感器

S1 = Tool’s arbor clamped 刀具夹紧时

S2= piston under pressure ready for receving tools arbor 无刀状态监测

The electrospindle cannot turn 主轴不可旋转

      S3= signal of spindle rotating 主轴旋转

      S4= tool’s arbor not clamped 未装刀状态监测

     The electrospindle cannot turn 主轴不可旋转

9.inlet air coolant motor(6 bar) (G1/8″)冷却液入口(6 bar) (G1/8″)

10.coolant outlet  (G1/8″)冷却液出口

11.oil inlet to block the shaft (50 bar) (Ø5) 轴密封油入口

12.hydraulic pressure unclamping tool ( 50 bar max) (G1/8″) 液压松刀

13.tool’s lubro refrigerant inlet by rotary joint (G1/4″) max 80 bar 旋转接头冷却液入口

14.Rear bearings lubrication (G1/8″) 后端轴承润滑

15.Front bearings lubrication  (G1/8″) 前端轴承润滑

16.Front – side pressurization ( 1-1.5 bar max) (G1/8″) 前端气密封

17.Unloading lubrication bearings (G1/8″) 轴承润滑泄油口

18.Rotary joint leackage outlet (G1/8″) 旋转接头泄油口

19.Tool cooling (Ø5) 刀具冷却

产品特点：

1.       主轴关键零部件配置采用欧洲著名品牌的ATE电机、L+B编码器、SNFA陶瓷球轴承、OTT旋转接头、balluff传感器。The main parts  using famous brand in europe ATE motor, SNFA ceramic ball bearings, Balluff sensor

2.       主轴液压松刀，松刀压力最大50bar，主轴刀具卡紧用碟簧。hydraulic pressure unclamping tool , max pressure  50bar,  tool clamping with disc spring, hydraulic pressure clamping tool 50bar (rerurn cylinder piston).

3.       主轴电机轴承需采用外置水冷机循环水冷，并采用KTY84温度传感器对主轴电机进行温升监控。spindle motor bearings need to adopt an external water cooler , and using KTY84 to check motor and the bearing temperature

4.       主轴轴承采用油气润滑。Bearings lubrication by air-oil

5.       主轴装有四个balluff数字量检测开关，分别检测主轴刀具卡紧到位、刀具松开到位及无刀卡紧到位，主轴旋转。outlet sensor’s cables (S1 – S2 – S3 – S4 ) 刀具传感器

  S1 = Tool’s arbor clamped 刀具夹紧时

  S2= piston under pressure ready for receving tools arbor 无刀状态监测

The electrospindle cannot turn 主轴不可旋转

      S3= signal of spindle rotating 主轴旋转

      S4= tool’s arbor not clamped 未装刀状态监测

      The electrospindle cannot turn 主轴不可旋转

6.       主轴可作为车削轴使用，主轴芯轴液压抱紧压力50bar。spindle shaft hydraulic clamping pressure 50bar.

7.       可采用HSK-A40刀柄形式。Tool holder HSK-A40

8.       具有中心水冷通道，能实现长刀冷却功能，最大中心水冷压力可达到80bar。central water channel, can realize  long cooling function. The largest center water pressure can reach 80bar

9.       具有锥孔吹气功能，实现主轴换刀过程中的刀柄及锥孔的清洁。Tool cleaning

10.   具有主轴前端轴承气密封功能。Front,  – side pressurization

11.   主轴前端具有刀具外冷环喷功能。Adjustable nozzle

12.   主轴电机自带外冷水冷套，无需用户自己设计水冷套，安装使用更加方便可靠。Spindle  with cooling water jacket
